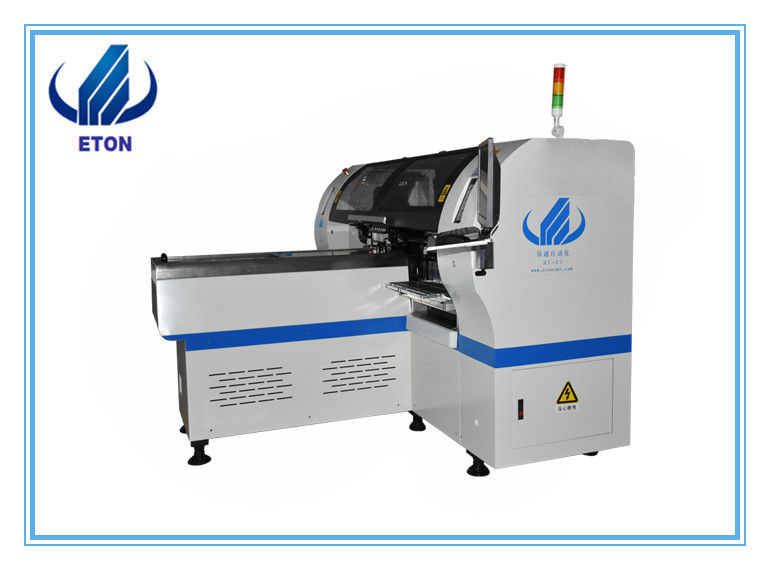

F7: PCB Length Width Max 330*1200 mm For LED Mounting Machine

F7: PCB Length Width Max 330*1200 mm For LED Mounting Machine
F7: PCB Length Width Max 330*1200 mm For LED Mounting Machine F7: PCB Length Width Max 330*1200 mm For LED Mounting Machine

大画像 :  F7: PCB Length Width Max 330*1200 mm For LED Mounting Machine

商品の詳細:

起源の場所: 中国
ブランド名: ETON
証明: CE CCC ISO
モデル番号: HT-F7

お支払配送条件:

最小注文数量: 1
価格: US $85,000-86,000 / Units
パッケージの詳細: 標準的な輸出パッケージ(真空パックとの木の場合)
受渡し時間: 15日
支払条件: T/T
供給の能力: 50
詳細製品概要
ディメンション: 2700*2450*1530 mm 総重量: 1400 の kg
PCBの長さの幅: 最高:330*1200 mm PCB の厚さ: 0.5-5 mm
土台の高さ: <15 mm=""> No.ofの送り装置の場所: 68 PC

Company Information

Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.

Eton mission: professional, excellent technology, sharing the results.

Eton goal: to create a national brand, build international Chinese enterprise.

Eton purpose: to create value for customers, creating benefits for society.







Product Description



Features

Double module professional high speed mounter

Apply to the 0.6M,0.9M,1.2M hard light board and 0.5M, 1M LED soft lamp strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor. Two mounting part, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.

Correction automatically, high precision, available for RGB

Global first technology patent: counterfeiting not allowed

IPC 9850 Capacity:150000-170000 CPH

Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0

ZL 2012 2 0178869.1 ZL 2012 2 0415505.0

ZL 2012 2 0415044.7 ZL 2012 2 0415356.8

ZL 2012 2 0415061.0



Technical Parameter

led bulb assembly machine/smt production line

Dimension Length 2700MM
Width 2450MM
Height 1530MM
Total Weight 1400 kg
PCB PCB length width Max:330*1200 mm Min:330*80 mm
PCB thickness 0.5~5mm
PCB Clamping Adjustable pressure pneumatic.
  Mounting Mode Group to pick and group to mount
O.S. system Windows7
software R&D independently
Display LED Monitor
Input Device Keyboard, Mouse
Feeding system No. of feeders 68 PCS
No. of nozzles 34 PCS
Feeder type Electronic feeder
Vision System No. of Camera 5 sets of imported camera
  Vision for the flight identification + MARK correction
Mounting Precision ±0.02mm chip
Mounting Height <15mm
Mounting Speed 100000-150000CPH(optimum)
Components LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
Components Space 0.2mm
Power 220AC 50HZ
Power Consumption 5 kw
Operating Environment 23±3
Conveyor Transmission Max Length:1200 mm
Transmission Speed >500mm/sec
Transmission Direction Single(left→right or right→left)
Transmission Mode Online drive
Air pressure >5.0kg/cm2
Air consumption <100 L/min
Electrical control Independent research and development by ETON
Motion control card module 2 sets Independent research and development by ETON
X,Y Axies Driving Servo motor control for X, Y, Z axies.









F7: PCB Length Width Max 330*1200 mm For LED Mounting Machine 0



FAQ

Q: What are your advantages?

Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

Q : Is there any quality guarantee?

We stick to quality first, client-oriented, Continuous improvement!

Q: What is SMT Machine?

This is an LED lamp patch machine using surface mount technology.

Q: Whether the machine's after-sale service is guaranteed?

Each of our machines has a one-year warranty and will regularly visit customers for use.






Our Services



Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Visit customer regularly and gather information.

Provide latest information about technology and equipment.



Packaging & Shipping

We use standard export packing(wooden case with vacuum packing)and deliver the goods at ShenZhen port 15days after payment.
