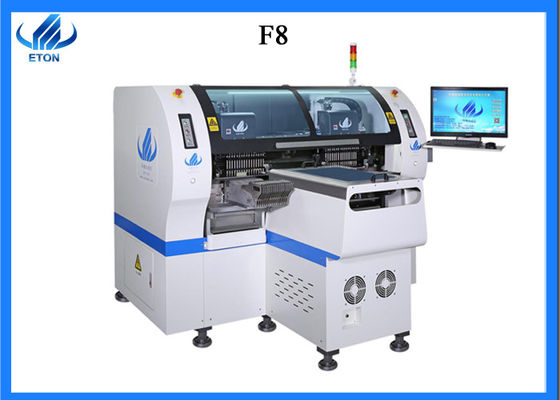

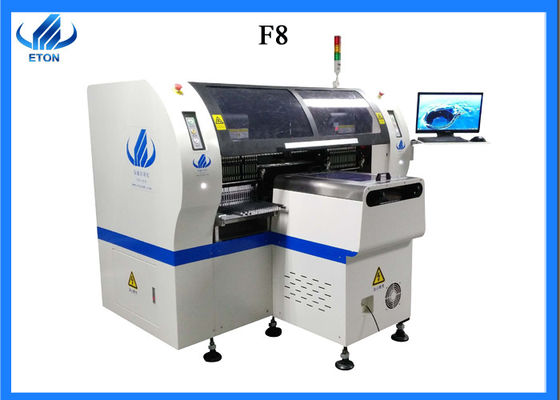

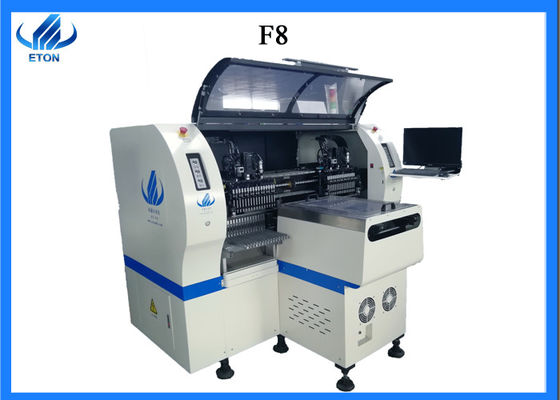

pick and place machinery,led light making machine,high speed pick and place machine ht-f8

product details

Components: LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

Application:LED display

Components of pick and place machine ht-f8 can mount include LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

SMT mounter ht-f8 is especially applies to LED display. Max mounting height is 15mm,mounting speed is 150000CPH.

technical parameter of smt mounter ht-f8

Model number	HT-F8
Dimension	1600*1900*1550mm
PCB size	80*110～345*600mm
PCB thickness	0.5～5mm
mounting mode	group to take and group to mount
system	windows 7
display	LED monitor
input device	keyboard,mouse
NO.of camera	5 sets of imported camera
mounting precision	±0.02mm
mounting height	<15mm
mounting speed	150000CPH
components space	0.2mm
NO.of feedings station	32pcs
NO.of nozzles	32pcs
power	220AC 50HZ
power consumption	5KW
operating environment	23℃±3℃
conveyor transmission	MAX length:1200mm
transmission speed	>500mm/sec
transmission direction	single(left→right,right→left)
transmission mode	Auto online drive
position mode	optical
air pressure	>5.0kg/c㎡
electrical control	independent research and development by ETON
motion control card module 1set	independent research and development by ETON
X.Y axis drive way	servo motor
feeding way	electric feeder with double motor

product features of smt mounter ht-f8

• PCB clamping isadjustable pressure pneumatic.
• Vision for the flight identification ,mark correction.
• Electronic feeder feeding system.
• Non-stop material re-loading function.
• Auto-optimization after coordinates generated.

product parts  of pick and place machine ht-f8

• Saline shaft from korea
• Mark camera from HK vision
• Grating scale from Renishaw,UK
• Guideway from IKO Japan
• Pneumatic components from SMC Japan
• Sensor from Beckhoff Germany
• Drag chain from IGUS Germany

Packing and transportation

We usually use waterproof material to pack our products in wooden cases. If the customer has special packing requirements, we can negotiate and conclude a contract. Partial shipments and transshipment are subject to the contract.

We usually ship within 30 days of receipt of payment.

Company profile

In November 2011, Shenzhen ETON automation equipment co., ltd. was established in Shenzhen, China. It is a national high-tech enterprise dedicated to the research and development, production, sales and after-sales technical service of SMT high-speed SMT mounter. Our management policy is sincere operation, concentrate on research and development, manufacturing, intimate service, customers rest assured. Our aim is to create value for customers and benefit for the society. We aspire to be the world's most competitive placement machine and cutting-edge electronic testing equipment manufacturing and service provider.

business terms

The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents and 12 software Copyrights.Successively obtained "Shenzhen high-tech enterprise", "national high-tech enterprise", “Shenzhen TOP brand”, “2015 LED technology innovation award” ,“industry special contribution award” ,“the 4th China LED first innovation award” ,“industry special contribution award”, “double soft enterprise”and so on.

our services

Before buying our machine:

• We have a professional sales manager to provide you with professional advice and services.
• We provide 24-hour online service to solve your problem quickly.
• We will specify the production plan for you according to your budget.

After buying our machine:

• 1 year free warranty.
• Visit customers regularly and gather information.
• Provide latest information about technology and equipment.
• Software updates are free for life.

 Our clients

the company has an absolute leading market share in the LED industry, and its products are exported to more than 20 countries including Korea, India, Vietnam, Tunisia, Egypt and Turkey.

Trade show

Since the establishment of the company, we have participated in many trade exhibitions at home and abroad, including Guangzhou Guangya exhibition, Turkey lighting exhibition, India lighting exhibition, Pakistan exhibition, India nepcon exhibition, Thailand exhibition, etc.We add a large number of foreign clients every year.
