| 長さ: | 1104mm | 幅: | 1584MM |
|---|---|---|---|
| 高さ: | 1655MM | 総重量: | 950kg |
| PCBのサイズ: | 50*50mm~400*350mm | PCBクランプ;ing: | 空気調節可能な圧力 |
| システム: | windows7 | ソフトウェア: | 独自にR & D |
| 表示: | タッチ画面のモニター | 入力装置: | キーボード、マウス |
| カメラのいいえ: | 2 | 力: | 380AC 50HZ |
| 力のconsmption: | 6kw | 土台モード: | 取得セントの棒、セントの取得セントの棒を分けて下さい |
| 部品スペース: | 0.2mm | コンベアトランスミッション: | 1200mm |
| 送り装置の場所: | 60pcs | ノズル: | 16pcs |
| 土台の速度: | 30000〜35000CPH | 土台の高さ: | 40mm |
1.product details

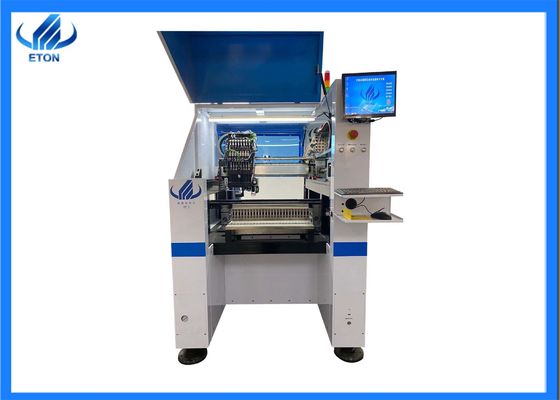

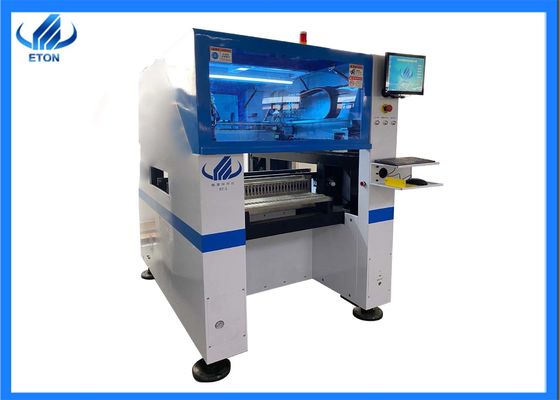

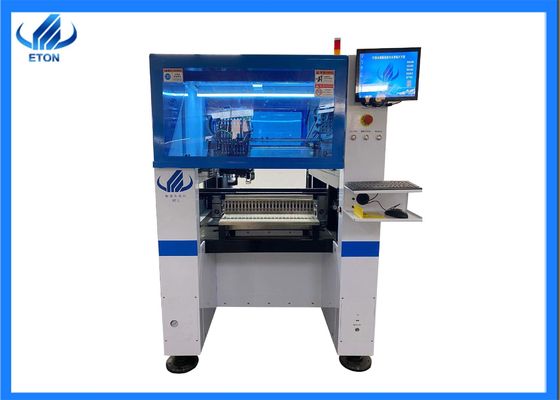

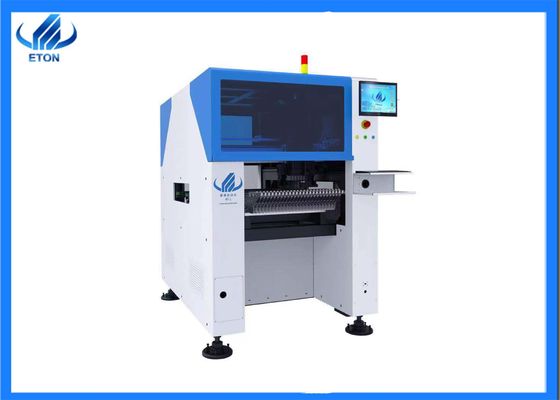

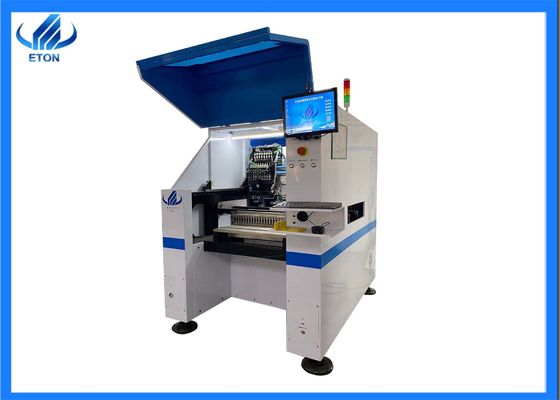

Rt-1 is a single-module multifunctional mounting machine with a capacity of 30000CPH～35000CPH. The components that can be mounted include LED3014/3020/3528/5050, capacitors, resistors, IC and special-shaped components.it applies to LED light and electric board.
2.technical parameter of smt mounter machine
| Place of origin | Guangdong,China |
| Model number | RT-1 |
| dimension | 1104*1584*1655 |
| PCB size | 50*50～400*350 |
| PCB thickness | 0.1～6mm |
| Mounting speed | 30000～35000CPH |
| Mounting mode | Group picking and separate placing, separate picking and separate placing. |
| Mounting precision | ±0.02cm |
| Feeder stations | 32pcs |
| nozzles | 10pcs |
| Mounting height | 40mm |
| No.of camera | 2 sets of imported camera |
3.product parts of smt mounter machine
4.trade terms of smt mounter machine
| Accepted delivery terms | EXW, FOB, CIF , CFR |
| Accepted payment currency | USD, CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
5.Packing & shipping of smt mounter machine
| Packaging materials | Waterproof material and wooden case |
| Lead time | Delivery within 30 days after receipt of payment.. |
| port | Shenzhen |
| Delivery time | Transshipment and partial shipment according to the contract |
6.trade show
Since the establishment of the company, we have participated in many trade exhibitions at home and abroad, including Guangzhou Guangya exhibition, Turkey lighting exhibition, India lighting exhibition, Pakistan exhibition, India nepcon exhibition, Thailand exhibition, etc.We add a large number of foreign clients every year.
7.company profile
In November 2011, Shenzhen ETON automation equipment co., ltd. was established in Shenzhen, China. It is a national high-tech enterprise dedicated to the research and development, production, sales and after-sales technical service of SMT high-speed SMT mounter. Our management policy is sincere operation, concentrate on research and development, manufacturing, intimate service, customers rest assured. Our aim is to create value for customers and benefit for the society. We aspire to be the world's most competitive placement machine and cutting-edge electronic testing equipment manufacturing and service provider.
The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents and 12 software Copyrights.Successively obtained "shenzhen high-tech enterprise", "national high-tech enterprise", “shenzhen TOP brand”, “2015 LED technology innovation award” ,“industry special contribution award” ,“the 4th China LED first innovation award” ,“industry special contribution award”, “double soft enterprise”and so on.
the company has an absolute leading market share in the LED industry, and its products are exported to more than 20 countries including Korea, India, Vietnam, Tunisia, Egypt and Turkey.
ETON’ s purpose: to create value for customers,creating benefits for society.
ETON vision: determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
Quality principle: quality first, client-oriented, continuous improvement!
Management policy: sincere business,focus on R&D,manufacturing intentions, considerate service,customer trust.
