1.product details

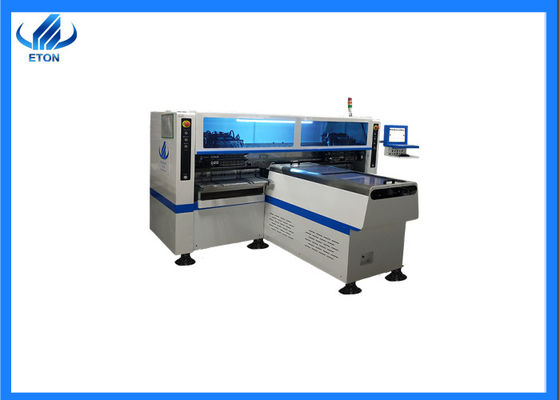

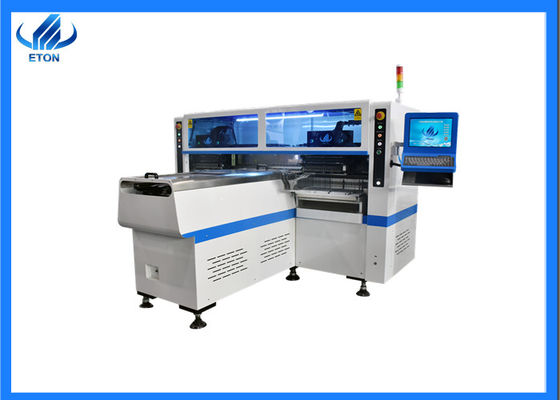

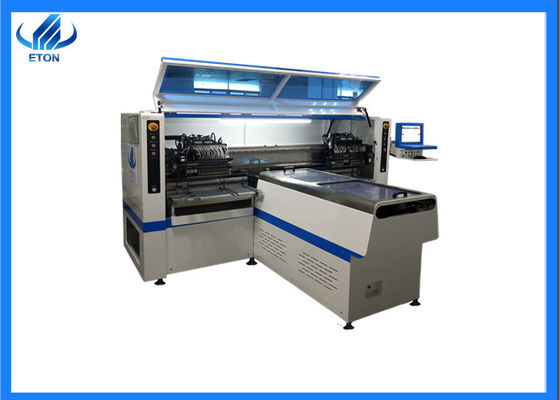

HT-X9 is dual-arm magnetic levitation LED high speed pick and place machine.the capacity reach 200000CPH.It is Suitable for 0.5M,1M Strip, Tube and Panel Light.it can mount LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
2.product Technical parameters of high speed pick and place machine
Model number | HT-X9 |
Dimension | 2450*2100*1550mm |
PCB size | 250mm*any length |
PCB thickness | 0.5~1.5mm |
PCB clamping | adjustable pressure pneumatic |
mounting mode | group to take and group to mount |
system | windows 7 |
display | touch screen monitor |
input device | keyboard,mouse |
NO.of camera | 5 sets of imported camera |
mounting precision | ±0.02mm |
mounting height | <13mm |
mounting speed | 200000CPH |
components space | 0.2mm |
NO.of feedings station | 64pcs |
NO.of nozzles | 64pcs |
power | 380AC 50HZ |
power consumption | 6KW |
operating environment | 23℃±3℃ |
conveyor transmission | any length |
transmission speed | >500mm/sec |
transmission direction | single(left→right,right→left) |
transmission mode | online drive |
position mode | optical |
Air Force | 0.5mpa |
electrical control | independent research and development by ETON |
motion control card module 1set | independent research and development by ETON |
X.Y axis drive way | high-end magnetic linear motor+servo motor |
feeding way | electric feeder with double motor |
2.product features of smt pick and place machine
3.Packing & shipping of smt mounter machine
Packaging materials | Waterproof material and wooden case |
Lead time | Delivery within 30 days after receipt of payment.. |
port | Shenzhen |
Delivery time | Transshipment and partial shipment according to the contract |
4.Company profile
5.Our Our certificates and certifications
6.our services
7. trade show
English :0201/0402/0603/0805/1206/1810
patch LED also called SMD LED, its luminescence principle is to pass the current through the compound semiconductor, through the combination of electrons and holes, the excess energy will be released in the form of light to achieve the effect of luminescence.
The current used for each 0.1 W, is 30 MA, due to the use of bottom heat dissipation, which is larger than the conventional low power current;
The 3528 is a conventional low power with a current of up to 20 MA per 0.06 W,;
The 5050 belongs to the conventional low power, each 0.06*3 W, uses the current to be within 20*3 MA, has three chips inside, therefore the current is also three times the conventional;
The length of the LED element is 1.6 mm, the width is 0.8 mm.. Industry abbreviation 1608, the English system is called 0603.
The length of the LED component is 2.0 mm, the width is 1.2 mm. the industry abbreviation is 2112, the English system name is 0805.
The length of the LED element is 3.5 mm, the width is 2.8 mm. Industry abbreviation 3528, the English system is called 1210.
This is the metric, which means that the length of the LED element is 3.5 mm, the width is 2.8 mm. Industry abbreviation 3528.
This is the metric, which means the length of the LED element is 5.0 mm, the width is 5.0 mm. Industry abbreviation 5050.
