| PCBのサイズ: | 250mm*any長さ | PCBクランプ;ing: | 空気調節可能な圧力 |
|---|---|---|---|
| システム: | windows7 | ソフトウェア: | 独自にR & D |
| 表示: | タッチ画面のモニター | 入力装置: | キーボード、マウス |
| カメラのいいえ: | 5 | 力: | 380AC 50HZ |
| 力のconsmption: | 6kw | 土台モード: | 棒のグループのグループ |
| 部品スペース: | 0.2mm | 送り装置の場所: | 68PCS |
| ノズル: | 68PCS | 土台の速度: | 200000CPH |
| 土台の高さ: | 13mm |

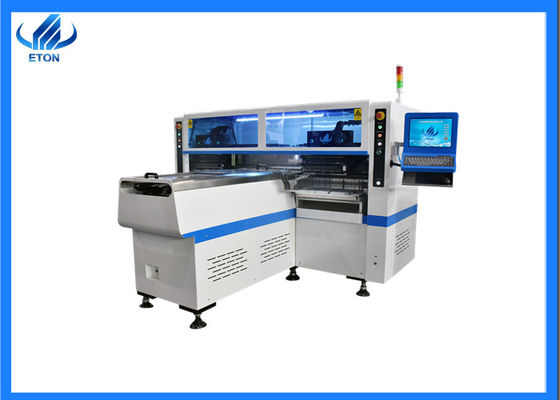

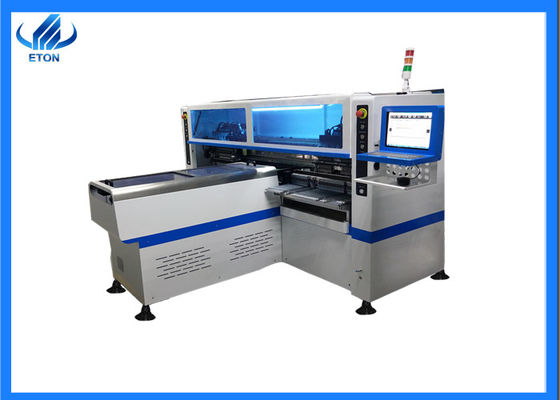

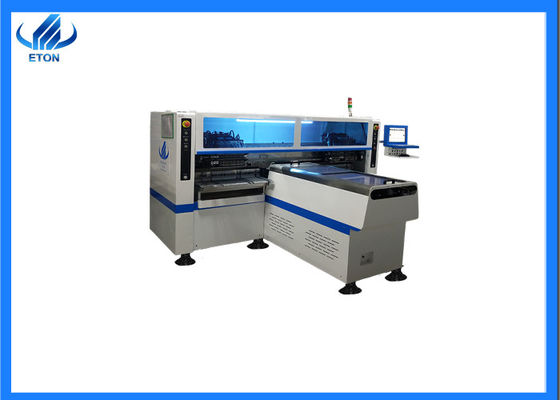

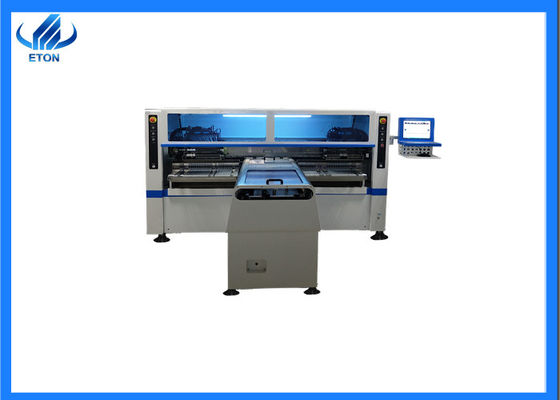

1.product details
it can Produce with 2～４ types of materials with capacity at same time with high capacity, it is available for 5m,50m or any length of flexible strip and roll to roll.
2.product Technical parameters of high speed pick and place machine
| Model number | HT-F9 |
| Dimension | 2700*2120*1550mm |
| PCB size | 1200*330～80*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.03mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components | LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 68pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
2.product features of smt pick and place machine
3.Packing & shipping of smt mounter machine
| Packaging materials | Waterproof material and wooden case |
| Lead time | Delivery within 30 days after receipt of payment.. |
| port | Shenzhen |
| Delivery time | Transshipment and partial shipment according to the contract |
4.Company profile
5.Our Our certificates and certifications
6.our services
7. trade show
| Name | Role |
| Thixotropic agent | Adjust the spread of tin paste and printing performance to prevent the appearance of tail, adhesion and other phenomena. |
| Activator | PCB removal of oxide material from the surface layer of the pad and the welding part of the parts has the effect of reducing the surface tension of tin and lead. |
| Solvent solvent | In the process of mixing tin paste, it plays a uniform role in regulating the life of tin paste. |
| Resin | Enhance solder paste adhesion; protect and prevent PCB oxidation after welding. |
