| PCBのサイズ: | 80*330mm~1200*330mm | PCBクランプ;ing: | 空気調節可能な圧力 |
|---|---|---|---|
| システム: | windows7 | ソフトウェア: | 独自にR & D |
| 表示: | タッチ画面のモニター | 入力装置: | キーボード、マウス |
| カメラのいいえ: | 5 | 力: | 380AC 50HZ |
| 力のconsmption: | 6kw | 土台モード: | 棒のグループのグループ |
| 部品スペース: | 0.2mm | 送り装置の場所: | 68PCS |
| ノズル: | 34PCS | 土台の速度: | 150000CPH~180000CPH |
| 土台の高さ: | 13mm |
1.product details

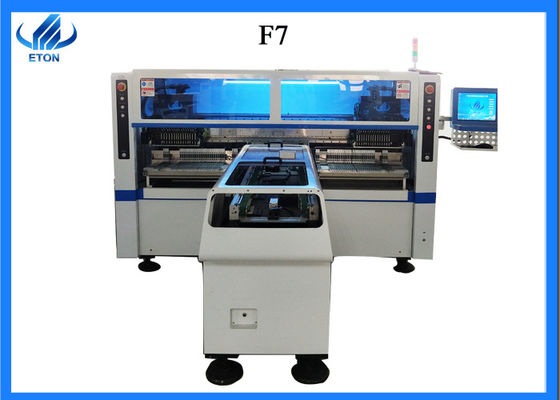

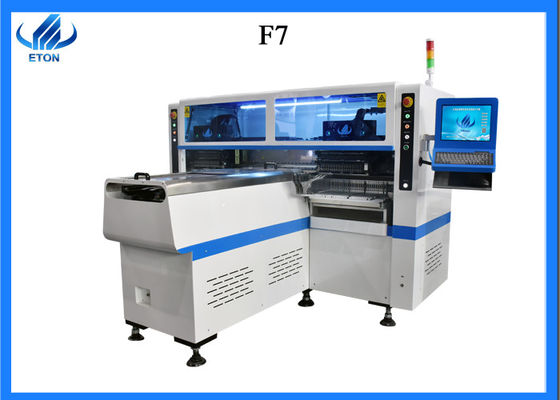

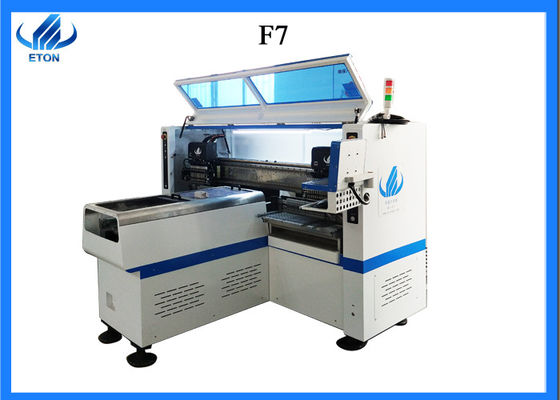

This high speed Pick and place machine ht-f7 is applies to 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Max mounting height is 13mm. Mounting speed is 200000CPH. The speed is higher and the precision is higher . The mounting mode is group to mount and group to mount.
Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
Application: 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.
2.product Technical parameters of high speed pick and place machine
| Model number | HT-F7 |
| Dimension | 2700*2120*1550mm |
| PCB size | 80*330～1200*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 34pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
2.product features of smt pick and place machine
3.Packing & shipping of smt mounter machine
| Packaging materials | Waterproof material and wooden case |
| Lead time | Delivery within 30 days after receipt of payment.. |
| port | Shenzhen |
| Delivery time | Transshipment and partial shipment according to the contract |
4.Company profile
5.Our Our certificates and certifications
6.our services
7. trade show
Magnetic levitation technology, referred to as EML technology or EMS technology, refers to the use of magnetic force to overcome gravity to make objects suspended technology.
The system of magnetic levitation technology is composed of four parts: rotor, sensor, controller and actuator, in which the actuator includes two parts: electromagnet and power amplifier. assuming that the rotor is subjected to a downward perturbation in the reference position, it will deviate from its reference position. at this time, the sensor detects the displacement of the rotor from the reference point. the microprocessor as the controller converts the detected displacement into a control signal. then the power amplifier converts this control signal into a control current, which generates magnetic force in the performing magnet, thus driving the rotor back to its original equilibrium position. Therefore, the rotor can always be in stable equilibrium regardless of whether the rotor is disturbed downward or upward.
preheating zone: PCB and material preheating, so that the welded material to achieve thermal equilibrium,
Constant temperature zone: remove the surface oxide, some airflow start to evaporate (start welding) temperature to reach the solder paste melting point (this time the solder paste is in the insoluble state), this is the reflux furnace is the 5673 heating interval heating action
Back soldering zone: from the melting point of solder to the peak and then down to the melting point, the process of solder melting, PAD to form welding with solder, this is aimed at the back soldering furnace is the heating effect of 893 heating intervals.
Cooling zone: from the solder dissolution point down to about 50 degrees, alloy solder joint formation process.
