商品の詳細:
お支払配送条件:
|
PCBのサイズ: | 80 * 110mm〜345 * 600mm | PCBクランプ;ing: | 空気調節可能な圧力 |
---|---|---|---|
システム: | windows7 | ソフトウェア: | 独自にR & D |
表示: | タッチ画面のモニター | 入力装置: | キーボード、マウス |
カメラのいいえ: | 5 | 力: | 380AC 50HZ |
力のconsmption: | 5KW | 土台モード: | 棒のグループのグループ |
部品スペース: | 0.2mm | 送り装置の場所: | 32pcs |
ノズル: | 32pcs | 土台の速度: | 150000CPH |
土台の高さ: | 15mm |

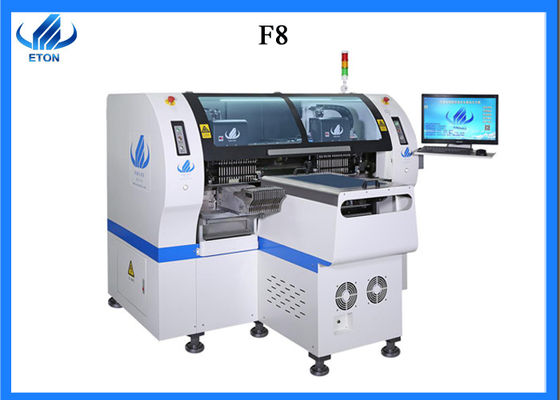

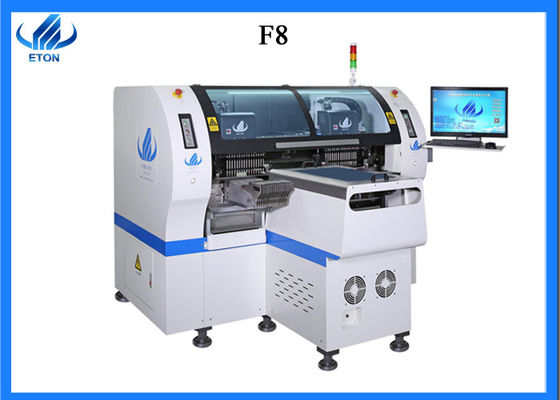

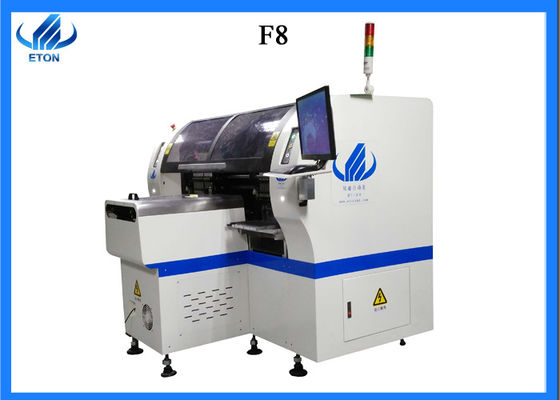

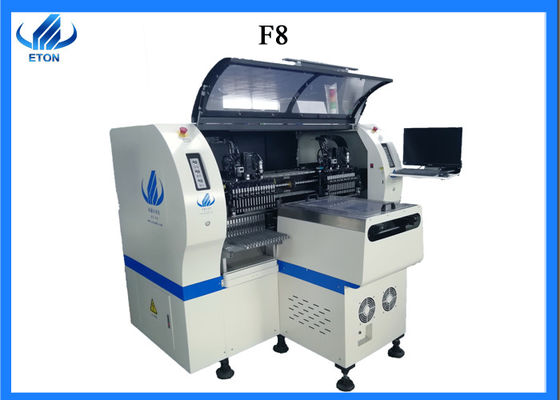

1.product details
Components of pick and place machine ht-f8 can mount include LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
SMT mounter ht-f8 is especially applies to LED display. Max mounting height is 15mm,mounting speed is 150000CPH.
2.product Technical parameters of high speed pick and place machine
Model number | HT-F8 |
Dimension | 1600*1900*1550mm |
PCB size | 80*110~345*600mm |
PCB thickness | 0.5~5mm |
mounting mode | group to take and group to mount |
system | windows 7 |
display | LED monitor |
input device | keyboard,mouse |
NO.of camera | 5 sets of imported camera |
mounting precision | ±0.02mm |
mounting height | <15mm |
mounting speed | 150000CPH |
components space | 0.2mm |
NO.of feedings station | 32pcs |
NO.of nozzles | 32pcs |
power | 220AC 50HZ |
power consumption | 5KW |
operating environment | 23℃±3℃ |
conveyor transmission | MAX length:1200mm |
transmission speed | >500mm/sec |
transmission direction | single(left→right,right→left) |
transmission mode | Auto online drive |
position mode | optical |
air pressure | >5.0kg/c㎡ |
electrical control | independent research and development by ETON |
motion control card module 1set | independent research and development by ETON |
X.Y axis drive way | servo motor |
feeding way | electric feeder with double motor |
2.product features of smt pick and place machine
3.Packing & shipping of smt mounter machine
Packaging materials | Waterproof material and wooden case |
Lead time | Delivery within 30 days after receipt of payment.. |
port | Shenzhen |
Delivery time | Transshipment and partial shipment according to the contract |
4.Company profile
5.Our Our certificates and certifications
6.our services
7. trade show
According to lamp head classification, divided into B22,E26,E27,E14
Classification according to heat dissipation case: plastic case, aluminum profile, ceramics
Type according to lamp holder: Snail: E27,E14,E22,E12; bayonet: B22( bayonet must flush needle)
more energy saving: the energy consumption of LED lamps is 1/4 of that of energy saving lamps and 1/10 of incandescent lamps.
longer life :50,000 hours, three ~ five times the energy saving lamp.
healthier: uniform light guide, no stroboscopic, no glare, no uv and transverse.
More environmentally friendly: does not contain the pump lamp harmful material, may recycle.
Full color change. Easy installation.
① manually put the drive board into the lamp cup;
② Machine calibration drive position (positioning);
③ Automatic Optical Source Board
④ Calendering Power Sheet for Automatic Pressing Machine
⑤ Automatic straightening
⑥ Automatic upper lamp head, test luminous or not, cut wire, punching needle, upper rivet, then rivet detection
⑦ Electrical parameter test, light source board test, defective products
⑧ Glue coating for dispensing
⑨ Automatic lampshade
⑩ Aging line, bad products
⑪ Automatic marking machine marking
⑫ Automatic packing
① LED automatic lamppost assembly machine
Artificial put drive into the lamp cup, put on the tray by the manipulator grab to the assembly machine, CCD detection, position detection, brush heat conductive silica gel, on the lamp bead board, test.
② LED automatic lampholder assembly machine
After the main platform is loaded, the center line is automatically adjusted, the upper head is mounted, the traverse is tested, and the rivet is punched on the needle.
③ LED bubble shell gluing machine
High voltage resistance test, electrical parameters test, bad products out. qualified product dispensing on the bubble shell.
④ LED bubble auto-aging line
Mainly for aging, four-stage voltage: high-voltage aging, high-voltage aging, atmospheric impact, atmospheric aging.
⑤ LED automatic cleaning marking machine
Waiting for cleaning test, marking.
⑥ LED automatic packing machine
automatically open the box and pack the lamp box cover.
