| PCBのサイズ: | 50 * 50mm〜350 * 400mm | PCBクランプ;ing: | 空気調節可能な圧力 |
|---|---|---|---|
| システム: | windows7 | ソフトウェア: | 独自にR & D |
| 表示: | タッチ画面のモニター | 入力装置: | キーボード、マウス |
| カメラのいいえ: | 2 | 力: | 380AC 50HZ |
| 力のconsmption: | 6kw | 土台モード: | 取得セントの棒、セントの取得セントの棒を分けて下さい |
| 部品スペース: | 0.2mm | 送り装置の場所: | 32pcs |
| ノズル: | 10pcs | 土台の速度: | 30000CPH~35000CPH |
| 土台の高さ: | 40mm |
1.product details

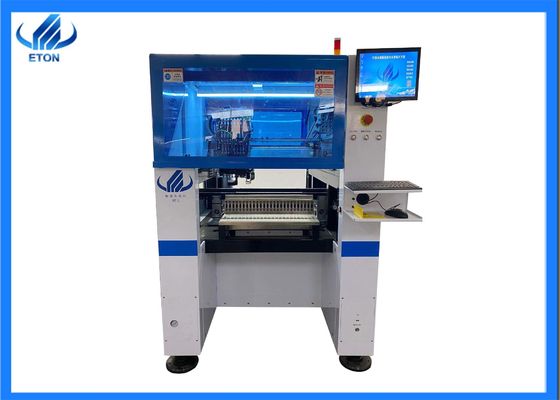

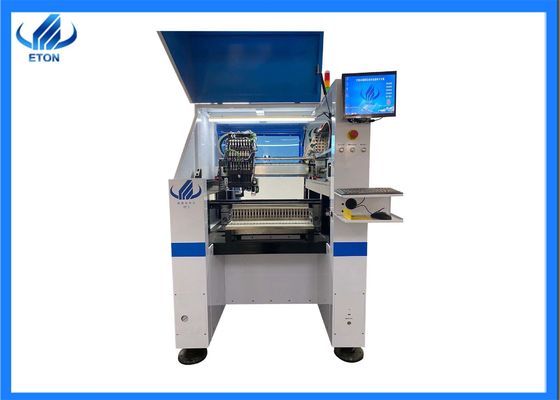

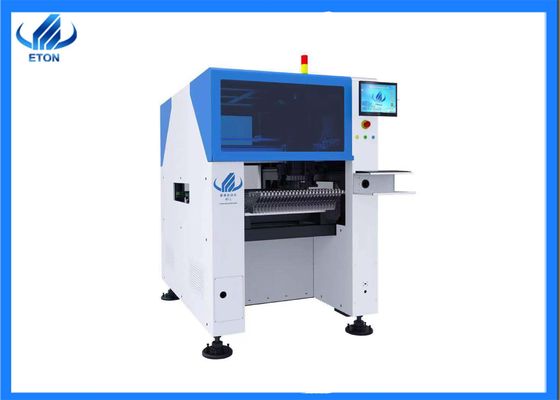

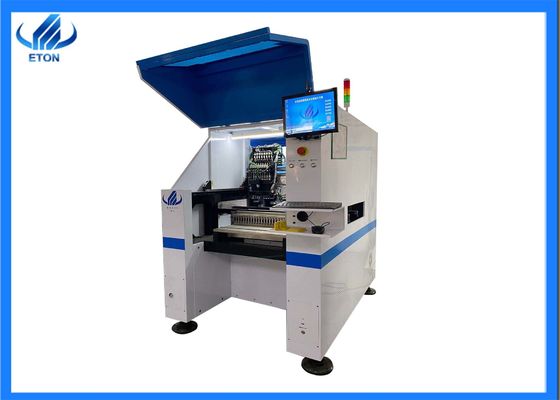

Rt-1 is a single-module multifunctional mounting machine with a capacity of 30000CPH～35000CPH. The components that can be mounted include LED3014/3020/3528/5050, capacitors, resistors, IC and special-shaped components.it applies to LED light and electric board.
2.product Technical parameters of high speed pick and place machine
| Place of origin | Guangdong,China |
| Model number | RT-1 |
| dimension | 1104*1584*1655 |
| PCB size | 50*50～400*350 |
| PCB thickness | 0.1～6mm |
| Mounting speed | 30000～35000CPH |
| Mounting mode | Group picking and separate placing, separate picking and separate placing. |
| Mounting precision | ±0.02cm |
| Feeder stations | 32pcs |
| nozzles | 10pcs |
| Mounting height | 40mm |
| No.of camera | 2 sets of imported camera |
3.product features of smt pick and place machine
4.Packing & shipping of smt mounter machine
| Packaging materials | Waterproof material and wooden case |
| Lead time | Delivery within 30 days after receipt of payment.. |
| port | Shenzhen |
| Delivery time | Transshipment and partial shipment according to the contract |
