商品の詳細:
お支払配送条件:
|
PCBのサイズ: | 250mm*any長さ | PCBクランプ;ing: | 空気調節可能な圧力 |
---|---|---|---|
システム: | windows7 | ソフトウェア: | 独自にR & D |
表示: | タッチ画面のモニター | 入力装置: | キーボード、マウス |
カメラのいいえ: | 5 | 力: | 380AC 50HZ |
力のconsmption: | 6kw | 土台モード: | 取付けるために取り、分かれるべきグループ |
部品スペース: | 0.2mm | 送り装置の場所: | 64PCS |
ノズル: | 64PCS | 土台の速度: | 200000CPH |
土台の高さ: | 13mm |
1.product details

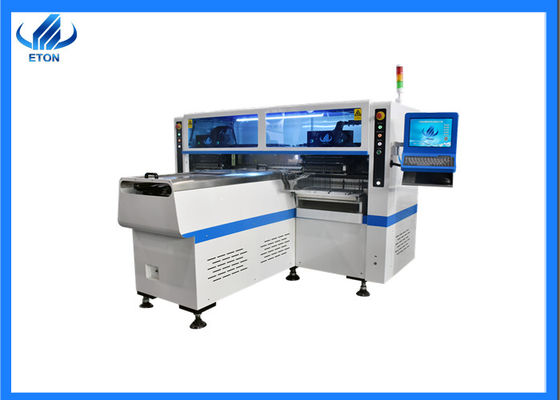

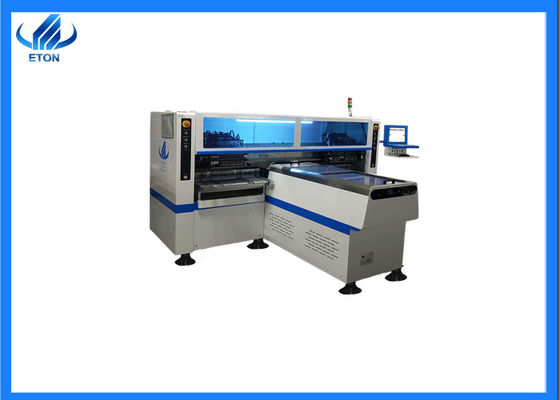

HT-X9 is dual-arm magnetic levitation LED high speed pick and place machine.the capacity reach 200000CPH.It is Suitable for 0.5M,1M Strip, Tube and Panel Light.it can mount LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
2.product Technical parameters of high speed pick and place machine
Model number | HT-T9 |
Dimension | 2450*2100*1550mm |
PCB size | 250mm*any length |
PCB thickness | 0.5~1.5mm |
PCB clamping | adjustable pressure pneumatic |
mounting mode | group to take and group to mount |
system | windows 7 |
display | touch screen monitor |
input device | keyboard,mouse |
NO.of camera | 5 sets of imported camera |
mounting precision | ±0.02mm |
mounting height | <13mm |
mounting speed | 200000CPH |
components space | 0.2mm |
NO.of feedings station | 64pcs |
NO.of nozzles | 64pcs |
power | 380AC 50HZ |
power consumption | 6KW |
operating environment | 23℃±3℃ |
conveyor transmission | any length |
transmission speed | >500mm/sec |
transmission direction | single(left→right,right→left) |
transmission mode | online drive |
position mode | optical |
Air Force | 0.5mpa |
electrical control | independent research and development by ETON |
motion control card module 1set | independent research and development by ETON |
X.Y axis drive way | high-end magnetic linear motor+servo motor |
feeding way | electric feeder with double motor |
3.product features of smt pick and place machine
4.Packing & shipping of smt mounter machine
5.Company profile
6.Our Our certificates and certifications
7.our services
8. trade show
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
With the increasing demand of electronic products for small, light, thin and high reliability, only the precise mount of fine spacing components can ensure the reliability of surface assembly mount. To accurately mount fine spacing components, generally consider the following factors.
