| PCBのサイズ: | 80 * 350ミリメートル〜1200 * 350ミリメートル | PCBクランプ;ing: | 空気調節可能な圧力 |
|---|---|---|---|
| システム: | windows7 | ソフトウェア: | 独自にR & D |
| 表示: | タッチ画面のモニター | 入力装置: | キーボード、マウス |
| カメラのいいえ: | 5 | 力: | 380AC 50HZ |
| 力のconsmption: | 6kw | 土台モード: | 棒のグループのグループ |
| 部品スペース: | 0.2mm | 送り装置の場所: | 68PCS |
| ノズル: | 68PCS | 土台の速度: | 200000CPH |
| 土台の高さ: | 13mm |

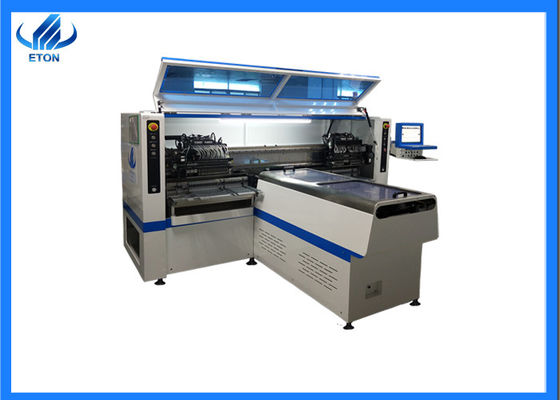

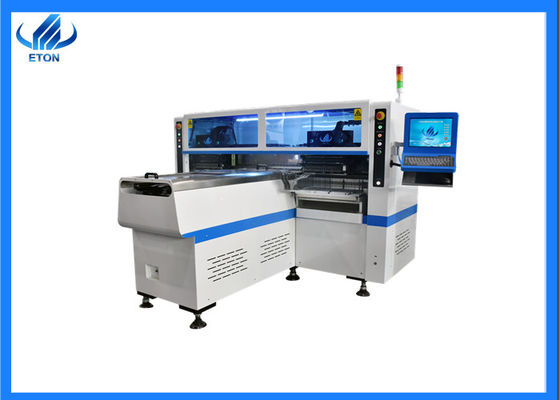

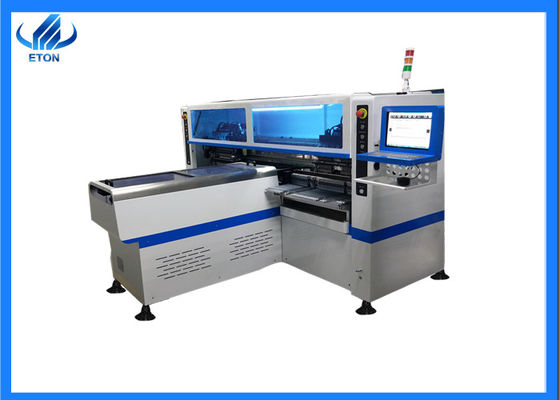

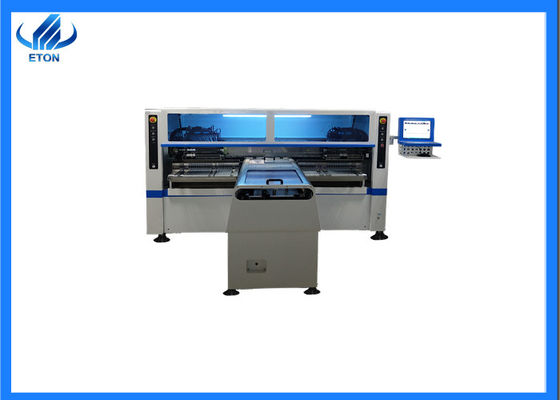

1.product details
Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.
2.product Technical parameters of high speed pick and place machine
| Model number | HT-F9 |
| Dimension | 2700*2120*1550mm |
| PCB size | 1200*330～80*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.03mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components | LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 68pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
3.product features of smt pick and place machine
4. The warranty
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
5.product parts of smt mounter
6.Packing & delivery of smt mounter machine
7.Company profile
Business terms:
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
8.Our Our certificates and certifications
9. trade show
10. FAQ
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
distinguished by the size and type of package of the component band. 4. Tray (also called waffle tray)4. Bulk straps can distinguish the size of the straps (e.g .8 mm,16mm,24mm,32mm,44mm, etc.).
Ensuring the integrity of components is a key factor to improve the reliability and efficiency of SMT patch feeder system. If the elements in the feeder reach are distorted, reversed, vacant and the feeding position is not equal, it will lead to very difficult to take the material, or even if the material is taken, it will be difficult to identify. If the components with the above defects are attached to the board, it will lead to rework. Therefore, to ensure that the SMT placement machine feeder working in good condition, the SMT placement machine must be regularly maintained.
