商品の詳細:
お支払配送条件:
|
| PCBのサイズ: | 250mm*any長さ | PCBクランプ;ing: | 空気調節可能な圧力 |
|---|---|---|---|
| システム: | windows7 | ソフトウェア: | 独自にR & D |
| 表示: | タッチ画面のモニター | 入力装置: | キーボード、マウス |
| カメラのいいえ: | 5 | 力: | 380AC 50HZ |
| 力のconsmption: | 6kw | 土台モード: | 取得セントの棒、セントの取得セントの棒を分けて下さい |
| 部品スペース: | 0.2mm | 送り装置の場所: | 64PCS |
| ノズル: | 64PCS | 土台の速度: | 200000CPH |
| 土台の高さ: | 13mm |
product details

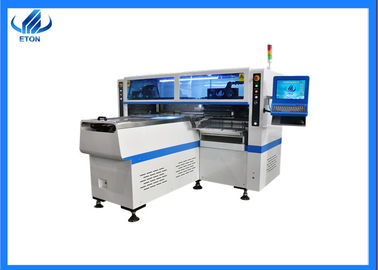

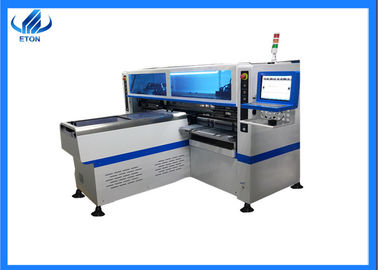

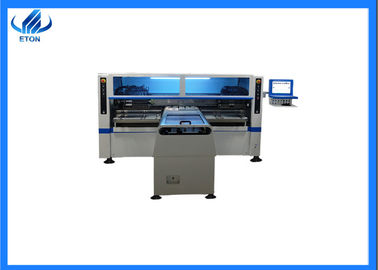

HT-X9 is dual-arm magnetic levitation LED high speed pick and place machine.the capacity reach 200000CPH.It is Suitable for 0.5M,1M Strip, Tube and Panel Light.it can mount LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
product Technical parameters of high speed pick and place machine
| Model number | HT-X9 |
| Dimension | 2450*2100*1550mm |
| PCB size | 250mm*any length |
| PCB thickness | 0.5～1.5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components space | 0.2mm |
| NO.of feedings station | 64pcs |
| NO.of nozzles | 64pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | any length |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| Air Force | 0.5mpa |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
Business terms of smt mounter
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
product parts of smt mounter
Packing & delivery of smt mounter machine
Company profile
Our Our certificates and certifications
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
The dispenser is also called glue coating machine, glue dropping machine, glue beating machine, glue filling machine and so on, specially controls the fluid. And the fluid drip, coated on the surface of the product or the product inside the automatic machine, can achieve three-dimensional, four-dimensional path dispensing, accurate positioning, accurate control glue, no wire drawing, no leakage glue, no drop glue. The dispenser is mainly used for glue, paint and other liquid precision points, injection, coating, drip to each product precise position, can be used to achieve dot, line, circle or arc type.
If there are no bubbles in the process of product filling, a vacuum perfusion system is needed
If the liquid has additives or needs to be combined with vacuum defoaming, the barrel should be equipped with an electric mixer.
The temperature control system should be installed in the barrel or pipeline when the operation is affected by the temperature change.
