商品の詳細:
お支払配送条件:
|
| Warranty: | 1 Year | Applicable components: | 0402 |
|---|---|---|---|
| Application: | LED lights, electrical products, household appliance | Power supply: | 380AC 50HZ |
| Condition: | New | Weight: | 2500kg |
| Mounting speed: | 90000 CPH | Dimension: | 3150mm*2250mm*1650mm |
| Feeders: | 48PCS | Pcb thickness: | 0.5-5 mm |
| ハイライト: | Electrical Board Mounting Machine,Electrical Board Mounting SMT Machine,LED Lighting Mounting SMT Machine |
||
Wider LED lighting electrical board mounting SMT machine
Product description

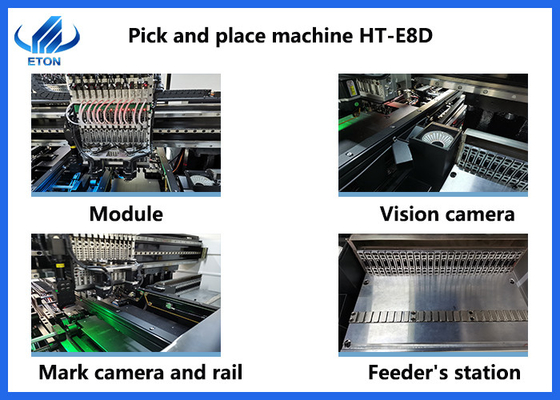

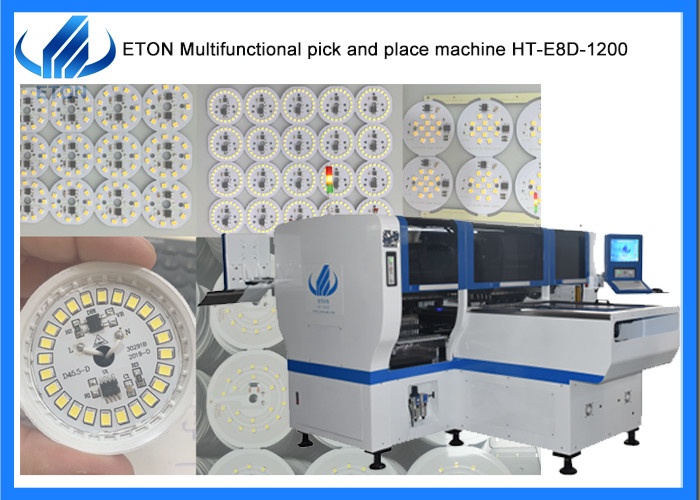

E8D-1200 multifunctional pick and place machine taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.
Features:
Exclusive Patented Technology:
Machine parameter
| Model | HT-E8D-1200 |
| Dimension | 3150mm*2250mm*1650mm |
| Total weight | 2500kg |
| PCB length width |
Max:1200*300mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing, Separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting speed | 90000CPH |
| No. of feeders station | 48PCS single module |
| No. of head | 24 PCS single module |
Machine application
Market
As for trading with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
Q. How can I look around your industrial park if I am on aboard?
A. If you have Chinese agent we can make an appointment to show you the environment, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.
Q. How long is the machine maintenance period, whether it is free?
A. The maintenance period of our machine is 1 year and its free for our clients, after the maintenance period we will arrange our engineers to check and test the machine one or two times a year freely.
