| Warranty: | 1 Year | Name: | translational conveyor |
|---|---|---|---|
| Application: | SMT Production Line | Condition: | new,100% Original,Brand-new |
| Type: | SMT Machine Related Products | Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED |
| ハイライト: | Customizable Length PCB Conveyor,PCB Conveyor CCC,500 mm translational conveyor |
||

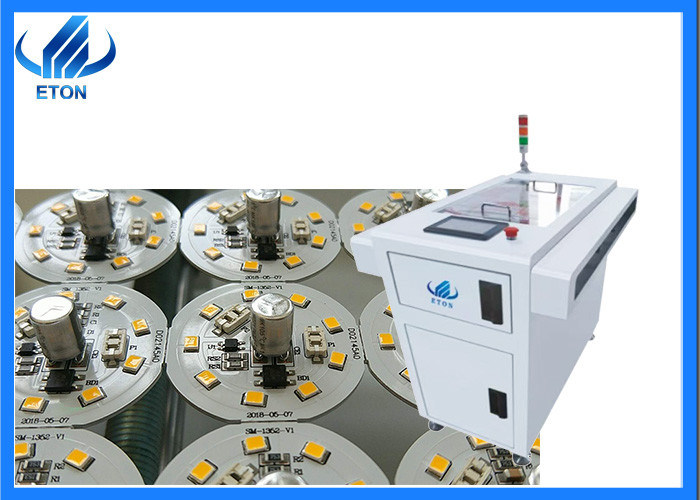

Surface mount technology equipment
Specifications
| Model | 500 mm translational conveyor |
| Dimension | L686xW1500xH1200mm |
| Rail Width | 50-390mm |
| Process lane | Single |
| Trolley amount | 1 |
| Cycle time | Approx 10 sec |
| Process height | 900±20mm |
| Flow direction | L→R or R→L |
| Board thickness | Min 0.6mm |
| Weight | 140kg |
| Power requirement | 220Vac 50/60Hz ,1ph |
Features
It is suitable for SMT production line to realize parallel load transfer between two positions for confluence or diversion.
(1) The frame is made of thickened sheet metal.
(2) Guide rail is made of special aluminum.
(3) The shifting action is driven by a stepper motor.
(4) The track is driven by a stepper motor.
(5) Panasonic PLC programmable controller control.
(6) Touch screen operation (display control).
(7) Single/double shift trolley is optional.
(8) Single/double track operation structure is available.
(9) Compatible with SMEMA interface.
(10) Smooth design buffer deceleration.
(11) A variety of length shifts are available.
Packages
Packaging: standard is plastic film wrap the LED SMT machine, then load into one 20" container; Wooden box packing can be customized.
Delivery: 35-40 days after 30% T/T prepayment, buyer should come to inspect when we do test running, after testing, pay the 70% balance before delivery
Service
After-sale
1)On-site Free installation.
2)One-year Warranty factory service.
3)Two regular visits customer one year.
4)Free technical training
Technical support
1)Free technical training of operating and maintenance.
2)7*24 hours technical online support.
3)Local engineer in India(Delhi, Mumbai and Daman), Turkey, Egypt.
Related SMT machine
We can provide you a whole SMT line solution and equipment, you can look this picture, we have semi-auto/full-automatic stencil printer, glue dispenser(this machine is mainly for making led lens), conveyor, reflow oven, etc.
We can meet your any demands for equipment, and pursue quality higher than price for machine manufacturing
FAQ
Q: How to operate the machine?
A: We will provide online video to help you to operate, we also have professional overseas engineers to your factory provide install, training service until you can operate the machine adroitly.
Q: Does your machines have quality certificate?
A: All of the machines have passed CE,SIRA and CCC certificate and have own patent.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: What is the payment way ?
A:We accept the payment terms: L/C, T/T.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 15 days is enough to learn to operate the machines.
