保証: | 1年 | 名前: | UD390 |
---|---|---|---|
PCB 厚さ: | 0.4-0.3 mm | 体重: | 240Kg |
使用: | PCBの荷役 | 適用する: | LEDライト,電気製品,家電 |
サイズ: | 2250*1010*1200 mm | 条件: | 新しい |
ハイライト: | 240 KG PCB Unloader,SMT Convenient PCB Unloader,SMT Production Line PCB Unloader |

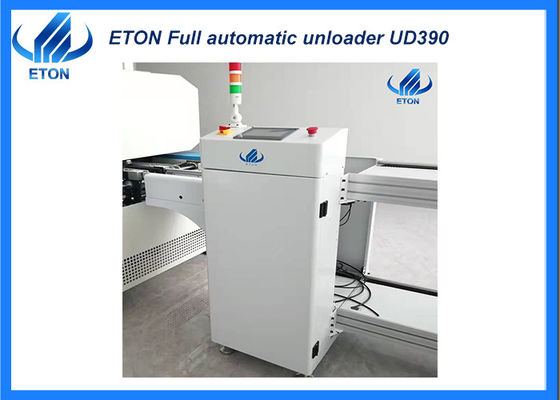

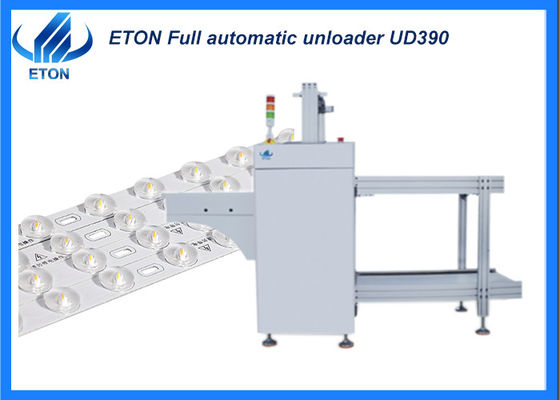

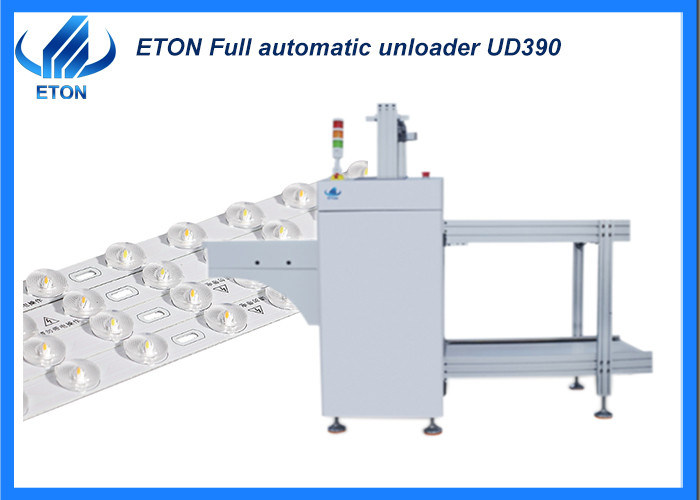

SMT convenient 240 KG unloading PCB in the SMT production line
Machine main features
1. The device of unloading PCB in the SMT production line;
2. PLC control, color man-machine interface operation;
3. Adopting the structure of steeping motor to push the board, the force and speed of the pushing board can be adjusted;
4. Auxiliary positioning brake system, accurate positioning, fast rising and falling speed, high production efficiency;
5. Multiple electric distribution circuit protection, safe and reliable;
6. Acousto-optic alarm system, abnormal information text prompt, easy operation and maintenance.
7. Standard SMEMA signal communication mode.
Description | This equipment is used for the lowering operation of the circuit board in the production line |
Number of turnover frame | One box on working, two boxes out of frame segment, two boxes into the frame segment(or customer specified) |
Send board time | Around 6 s |
Frame change time | Around 25 s |
PCB thickness | 0.4-0.3 mm |
Transmission height | 900±20 mm |
PCB size | 80*50-510*390 mm |
Dimension | 2250*1010*1200 mm |
Size of turnover frame | 535*460*570 mm |
Approximate weight | About 240 KG |
Transmission direction | Left-right, right-left |
Air pressure and air flow | 4-6 Bar, up to 1L/min |

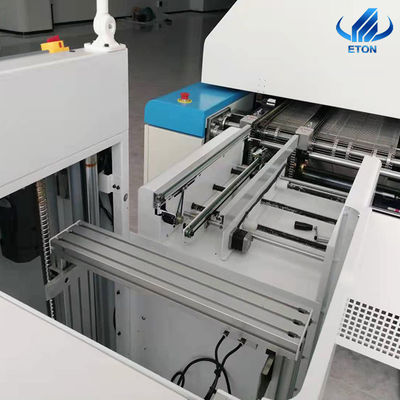

Machine main part
