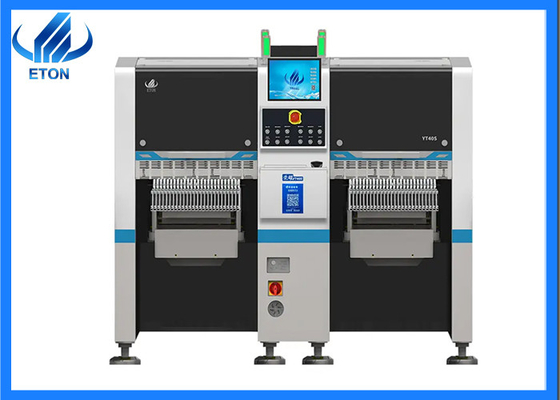

高速ピック&プレイスマシン 精密型SMTマウントマシン L 2795 X W 1497 X H 1687 寸法

高速ピック&プレイスマシン 精密型SMTマウントマシン L 2795 X W 1497 X H 1687 寸法
高速ピック&プレイスマシン 精密型SMTマウントマシン L 2795 X W 1497 X H 1687 寸法 高速ピック&プレイスマシン 精密型SMTマウントマシン L 2795 X W 1497 X H 1687 寸法

大画像 :  高速ピック&プレイスマシン 精密型SMTマウントマシン L 2795 X W 1497 X H 1687 寸法

商品の詳細:
Place of Origin: Shenzhen,China
ブランド名: ETON
証明: CE,SIRA,CCC,ISO
Model Number: HT-E6T-600
文書: 製品説明書 PDF
お支払配送条件:
Minimum Order Quantity: 1 UNIT
価格: USD10000~43000USD per Unit
Packaging Details: Standard export wooden case package(Can do as customers' requirement)
Delivery Time: Within 15 days after receive the downpayment
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P
Supply Ability: 30 UNIT per month
詳細製品概要

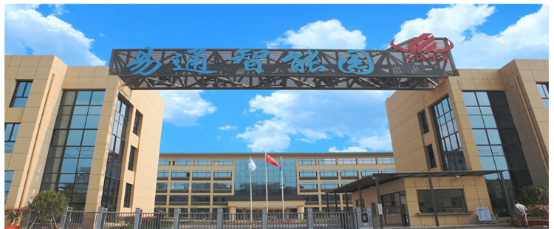

Company Profile: 52,000-square-meter industrial park, 85% market share in China, exported to over 30 countries, professional R&D team, independent feeder design, over 10 years of experience in LED lighting field Mounting Precision: ±0.03mm (Repeat precision)
Service: FREE installation and Training, FULL SMT solution No. Of Feeders Station: 104PCS (Double material feeder, can load 64 trays of material)
Total Weight: 3400kg PCB Length Width: MAX: 500x350mm (length can be customized) MIN: 50x50mm
Product Category: SMT Mounting Machine Dimension: L 2795 X W 1497 X H 1687
ハイライト:

高速一突きおよび場所機械

,

精密マウント ピックと場所のマシン

,

精密SMTマウントマシン

Product Description:

The SMT Mounting Machine by ETON is an advanced Electronics Component Placer designed to provide efficient and precise SMT Placement capabilities. With high speed pick and place functionality, this machine is ideal for manufacturing processes that require quick and accurate placement of electronic components.

Equipped with independent vacuum detection for reclaiming material, this SMT Mounting Machine ensures reliable operation and effective handling of components during the placement process. The vacuum detection feature enhances the overall efficiency of the machine, contributing to seamless production workflows.

Operating on AC220 50Hz power supply, this SMT Mounting Machine offers consistent performance and reliable power output for continuous production processes. The machine's power specifications enable it to handle demanding manufacturing requirements with ease, making it a dependable choice for industrial settings.

As a leading product in the Product Category of SMT Mounting Machines, this equipment exemplifies the quality and precision associated with the ETON brand. ETON is known for its innovative solutions in the electronics manufacturing industry, and this Electronics Component Placer is no exception, showcasing cutting-edge technology and superior engineering.

Weighing a total of 3400kg, the SMT Mounting Machine strikes a balance between robust construction and operational efficiency. The sturdy build of the machine ensures stability during operation, while its manageable weight allows for easier transportation and installation within manufacturing facilities.


Features:

  • Product Name: SMT Mounting Machine
  • Service: FREE installation and Training, FULL SMT solution
  • No. Of Feeders Station: 104PCS (Double material feeder, can load 64 trays of material)
  • PCB Length Width: MAX: 500x350mm (length can be customized) MIN: 50x50mm
  • Vacuum Detection: Independent vacuum detection of reclaiming material
  • Packaging and Delivery: Protected with foam, stretch film, belts, triangular wood, vacuum paper packaging, moisture-proof bags, and non-export wooden box

Technical Parameters:

Components 0201 ~ 15x15mm packaging materials
Height 20mm
Total Weight 3400kg
No. Of Feeders Station 104PCS (Double material feeder, can load 64 trays of material)
Vacuum Detection Independent vacuum detection of reclaiming material
Product Category SMT Mounting Machine
PCB Length Width MAX: 500x350mm (length can be customized) MIN: 50x50mm
Air Supply 0.4-0.6Mpa (4-6Kgf/㎡)
Company Profile 52,000-square-meter industrial park, 85% market share in China, exported to over 30 countries, professional R&D team, independent feeder design, over 10 years of experience in LED lighting field
Mounting Speed 200000 CPH (Under the best conditions for our company)
Mounting Precision ±0.03mm (Repeat precision)

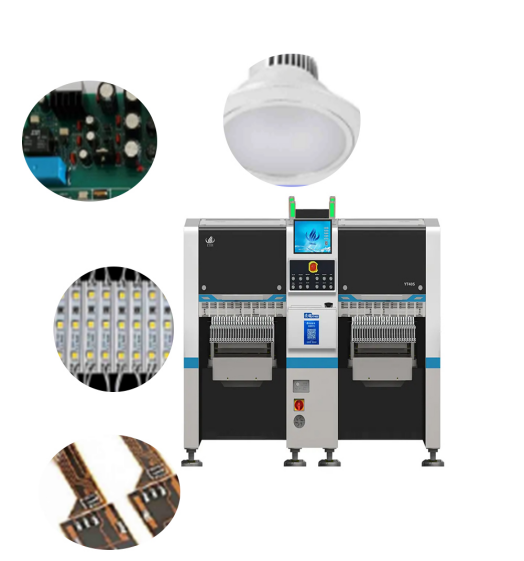

Applications:

Whether you are working in electronics manufacturing, automotive production, or any other industry requiring SMT placement equipment, the HT-E6T-600 is a reliable choice. Its certification including CE, SIRA, CCC, and ISO ensures that it meets quality and safety standards for different working environments.

Originating from Shenzhen, China, this machine can be ordered with a minimum quantity of just 1 unit, making it accessible to both small and large-scale operations. The price range of USD10000 to 43000 per unit offers flexibility based on budget and requirements, while payment terms such as T/T, L/C, Western Union, MoneyGram, and D/P provide convenience for customers.

With a supply ability of 30 units per month and a delivery time of within 15 days after receiving the downpayment, the HT-E6T-600 ensures quick availability for your production needs. The machine's total weight of 3400kg and air supply requirement of 0.4-0.6Mpa further highlight its robust build and operational specifications.

Customers can expect not only a high-speed and accurate mounting process with a speed of 200000 CPH but also excellent service from Eton, including free installation and training, as well as a full SMT solution. The packaging details in a standard export wooden case package demonstrate care in transportation, with customization options available based on customer preferences.


Support and Services:

Our SMT Mounting Machine product comes with comprehensive Product Technical Support and Services to ensure smooth operation and maximum efficiency.

Our technical support team is available to assist with any product-related issues, troubleshooting, and maintenance queries.

We also offer training services to help users optimize their use of the machine and increase productivity.

Additionally, our service team provides timely maintenance and repair services to keep the machine running at its best performance.


Packing and Shipping:

Product Packaging:

The SMT Mounting Machine is carefully packaged in a sturdy cardboard box to ensure its safety during shipping. The machine is wrapped in protective foam and secured with packing materials to prevent any damage during transit.

Shipping:

Orders for the SMT Mounting Machine will be processed within 1-2 business days. We offer standard shipping options as well as expedited shipping for urgent orders. Once your order is shipped, you will receive a tracking number to monitor the delivery status of your package.


FAQ:

Q1: What is the brand name of the SMT Mounting Machine?

A1: The brand name of the SMT Mounting Machine is ETON.

Q2: What is the model number of the SMT Mounting Machine?

A2: The model number of the SMT Mounting Machine is HT-E6T-600.

Q3: Where is the SMT Mounting Machine manufactured?

A3: The SMT Mounting Machine is manufactured in Shenzhen, China.

Q4: What are the available payment terms for purchasing the SMT Mounting Machine?

A4: The available payment terms for purchasing the SMT Mounting Machine are T/T, L/C, Western Union, MoneyGram, D/P.

Q5: What is the minimum order quantity for the SMT Mounting Machine?

A5: The minimum order quantity for the SMT Mounting Machine is 1 UNIT.
