| Model: | ET5235 | Printer head: | Two independent direct-connect motor-driven print heads |
|---|---|---|---|
| Squeegee speed: | 6~300mm/sec | Squeegee pressure: | 0~10kg/c㎡ |
| Squeegee angle: | 55º | Squeegee type: | Steel scraper,PV scraper |
| Stencil separation speed: | 0.1~20mm/sec programmable | Cleaning system: | Dry, Wet, Vacuum(programmable) |
| ハイライト: | Programmable Stencil Printer Machine,20mm/Sec Stencil Printer Machine,SMT Stencil Printer PC control |
||

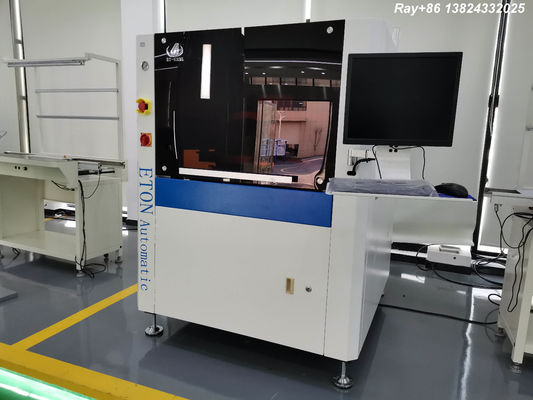

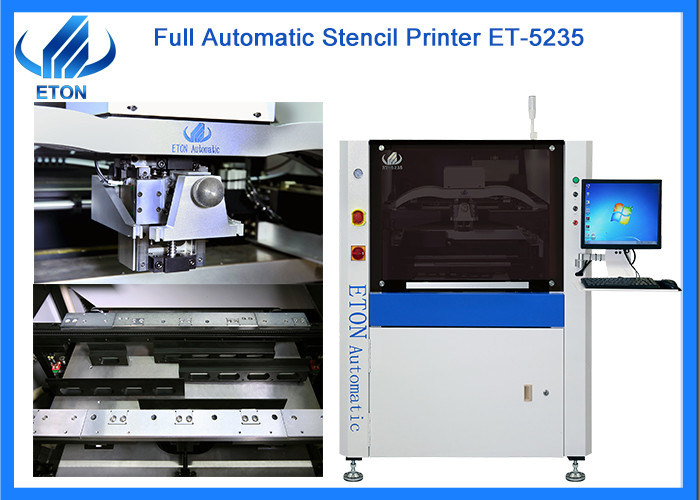

0.1~20mm/Sec Programmable Full Automatic Vision Stencil Printer Machine
Technical parameter
| Model | ET5235 |
| Screen Frame max size | 737mm |
| PCB size | max 520*350mm |
| Squeegee pressure | 0~10kg/c㎡ |
| Squeegee accuracy | 0.025mm |
| Squeegee type | Steel scraper,PV scraper |
| Stencil separation speed | 0.1~20mm/sec programmable |
| Cleaning system | Dry, Wet, Vacuum(programmable) |
| Control method | PC control |
1.the PCB loading direction can be selected and combined freely
2.adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh
3.The size of steel mesh is universal,with good and wide applicability
4. The fully closed-loop scraper pressure feedback device monitor the scraper pressure at all times, making the printing more full

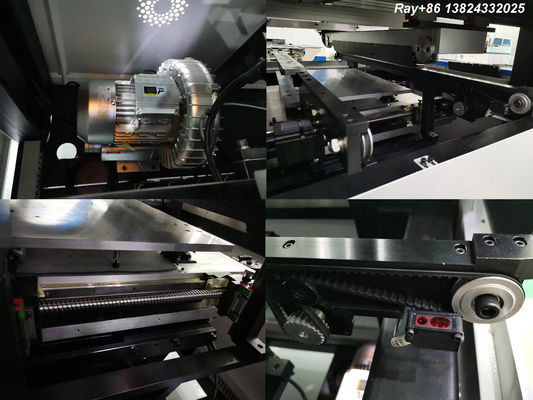

5.X,Y axis adopts high-precision grinding ball screw, driven by servo motors at both side
6.The polarizer is added inside, and the MARK of different shapes is automatically and accurately grasped, and the upper, lower and coaxial three-way uniform light sources.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
The application
Our advantages:
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Market:
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
FAQ
Q: Why do you choose our product?
Provide 1-2 times a year free for machine repair, after the warranty period.
Q: About technical offer
A: As for machine operation, we will arrange engineers to go to your factory for installation and teaching after you buy our machines.
If you have engineers who have been involved in the installation of SMT equipment, we can teach you how to install it online.
